Custom CNC Lathe Services Tailored to Your Design
CNC Lathe Services are the foundation of modern machining, transforming detailed digital designs into precise mechanical components. By combining high-speed rotation with advanced cutting control, CNC turning offers superior efficiency and tight tolerances. Whether for prototypes or production runs, expert machinists and automated lathes deliver consistent, high-quality results across a wide range of materials.
What Are CNC Lathe Services? Core Concepts Demystified
To make suitable decisions, we should understand the technology and its terms. This clarity ensures that your project needs match what the manufacturing process do.
The Principle of CNC Turning
Think of a potter’s wheel, but for metal or plastic. The main idea of CNC turning is similar: a solid material block, usually round bar which is held in a chuck and spun at high speed. Then a cutting tool moves into the part to remove material, shaping it into the desired cylindrical shape.
This method works well for making parts with round features, such as shafts, pins, rings, and custom fittings.
Defining “CNC”: The Role of Computer Numerical Control
The “CNC” stands for Computer Numerical Control (CNC). Instead of a person manually controlling the machine with handwheels and levers, the whole operation follows pre-programmed computer code.
This computer control gives three major benefits to the manufacturing process: incredible Präzision, perfect Reproduzierbarkeit from the first part to the ten-thousandth, and unmatched Wirkungsgrad from optimized routes and speeds.
CNC Lathe vs. CNC Milling: Choosing the Right Process for Your Part
A common decision is choosing between CNC turning and CNC milling. Both remove material, but they work differently and suit different part shapes. Making the right choice in advance to svae cosr and manufacturing time.
CNC milling uses a spinning cutting tool that removes material from a fixed workpiece. It works best for making parts with flat surfaces, pockets, holes, and complex, non-symmetrical shapes.
The guide list for reference:
| Criterion | CNC Lathe / Turning Services | CNC-Fräsen Dienstleistungen |
| Primary Part Shape | Cylindrical, conical, round, or concentric parts. | Prismatic, flat, or complex non-symmetrical shapes. |
| Tool/Workpiece Motion | Die workpiece rotates; the cutting tool moves along it. | Die cutting tool rotates; the workpiece is typically stationary or moves on multiple axes. |
| Best for… | Shafts, pins, bushings, rings, custom fittings, nozzles. | Enclosures, brackets, manifolds, gears, complex molds. |
| Kosten | Highly cost-effective for round and cylindrical parts and features. | More efficient for creating flat surfaces, pockets, and off-axis features. |
| Typical Appearance | Often shows concentric tool marks (lay) around the diameter. | Can show linear or contoured tool marks depending on the toolpath. |
What About Multi-Axis and Mill-Turn Centers?
Modern manufacturing blurs these lines. Advanced machines like CNC lathes with Y-axis capabilities or sophisticated Mill-Turn Centers combine both processes. These machines can perform milling operations on a turned part without a second setup, enabling “done-in-one” machining for highly complex components that feature both cylindrical and prismatic geometries.
The CNC Turning Process: A Step-by-Step Journey from Digital File to Finished Part
Understanding how production works helps you prepare the right information for a smooth manufacturing process. Here’s the journey your part takes from digital concept to physical component.
Step 1: CAD Model & Technical Drawing
This is the basic blueprint. A 3D CAD drawing (often in stp, step. Igs or x_t format) defines the part’s shape. A 2D technical drawing is equally important, as it shows vital details in stead of 3D, such as Toleranzen, thread specs, surface finish requirements, and key inspection dimensions.
Step 2: CAM Programming
Our engineers use Computer-Aided Manufacturing (CAM) software to turn your CAD model into G-code. This code tells the CNC lathe exactly how to move, which tools to use, and what speeds to apply.
Step 3: Machine Setup
A skilled machinist prepares the CNC lathe. They securely clamp the raw material into the machine’s chuck, load the needed cutting tools into the turret, and check all offsets and coordinates. This setup phase is critical for accuracy.
Step 4: Machining Operations
The machine runs the G-code program. This usually involves several steps, starting with roughing passes to remove most of the material quickly. Then come finishing passes to achieve the final dimensions, tight tolerances, and specified surface finish.
Step 5: Quality Control & Inspection
The part moves to quality control after machining done, t. Using precision tools like calipers, micrometers, and Coordinate Measuring Machines (CMM), we measure the part to verify that every dimension meets your specifications.

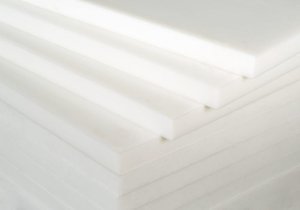

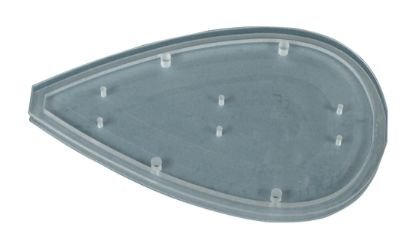

Materials for CNC Turning: A Practical Selection Guide
Choosing the right material balances performance, cost, and machinability. The selection process starts by considering the application’s required key material properties, such as strength, hardness, chemical and corrosion resistance, weight, and thermal stability.We work with many metals and plastics, each with unique strength.
Beyond Basic Turning: Advanced Capabilities of Modern CNC Lathe Services
Today’s CNC lathes can do much more than make simple cylinders. They perform many operations in one setup, allowing for complex multifunctional parts.
- Facing: Creates a flat surface on the end of the workpiece, often used as a key reference plane.
- Grooving: Cuts precise channels or grooves, commonly used for O-rings, retaining clips, or for looks.
- Threading: Makes internal (tapped) or external (turned) screw threads to exact specs for fasteners and connections.
- Drilling & Boring: Drilling makes a hole along the part’s centerline. Boring then enlarges that hole to a precise diameter with a smooth internal finish.
- Knurling: Creates a patterned, textured surface on a part, typically for providing a good grip on knobs or handles.
- Parting: The final step where a special tool cuts the finished component off from the remaining stock.
The Power of Live Tooling and Mill-Turn Centers
A key advance in modern CNC Lathe Services is the addition of live-tooling capabilities. These are powered, rotating tools—like end mills or drills—mounted in the lathe’s turret.
This technology lets the machine perform milling, drilling, and tapping operations on the workpiece off-center or on its face. It allows for features like flats, slots, and radial holes without moving the part to a separate milling machine. This “done-in-one” capability reduces setup time, improves accuracy, and lowers the cost of complex components a lot.
Understanding Key Cost-Drivers in CNC Lathe Services
While CNC turning is efficient, certain design features can greatly affect the final part cost. Understanding these factors helps you make small design changes that can lead to big savings.
- Material Cost & Machinability: The raw material price is a direct cost. Also, harder or more abrasive materials (like Titanium or high-nickel alloys) are harder to machine, requiring slower speeds, special tooling, and more machine time, which increases cost.
- Tight Tolerances: The precision of a part is a main cost driver. A standard tolerance (e.g., +/- 0.125mm) is much easier and faster to achieve than a very tight tolerance (e.g., +/- 0.01mm). The latter requires more careful machining, slower finishing passes, and much more time for inspection, often using advanced equipment. Following standards like the ISO 286 tolerance system helps clarify requirements.
- Part Complexity & Geometry: Features that add complexity will add cost. This includes very deep or narrow grooves, extremely thin walls that might vibrate, and complex curved surfaces that require special form tools or extended programming time.
- Surface Finish Requirements: A standard machined finish is the most cost-effective. Requiring a smoother, mirror-like finish needs additional finishing passes at slower rates or even extra operations like grinding, honing, or polishing, all of which add to the cost.
- Setup Time vs. Quantity: A large part of the cost for low-volume runs is the initial machine setup time. This fixed cost is spread over the number of parts produced. Therefore, as the quantity increases, the per-part price decreases significantly, making higher volumes much more economical.
Design for Manufacturability (DFM): Pro Tips for Turned Parts
Applying Design for Manufacturability (DFM) principles is the best way to reduce costs and improve the quality of your turned components. These tips come from real shop floor experience.
DO:
- DO Specify Radii on Internal Corners: Sharp internal corners are nearly impossible to create with a standard turning tool and create stress points. Always design with a corner radius that is equal to or larger than the tool’s nose radius.
- DO Design with Standard Stock Sizes in Mind: If your part’s maximum outer diameter (OD) is 25mm, it can be made efficiently from 25mm bar stock. If your design calls for 25.5mm, it must be machined from the next largest standard size (e.g., 30mm), wasting material and time.
- DO Keep Hole Depth-to-Diameter Ratios Reasonable: Drilling deep, narrow holes (a ratio greater than 10:1) is very challenging. It requires special tools, peck drilling cycles, and increases the risk of tool breakage and drift.
- DO Clearly Define Only the Critical Tolerances: Apply tight tolerances only where they are functionally necessary. Over-tolerancing non-critical features adds significant, unnecessary cost to inspection and manufacturing.
DON’T:
- DON’T Design Overly Long, Thin Parts: Parts with a high length-to-diameter ratio tend to bend and vibrate during machining, making it hard to hold tight tolerances.
- DON’T Specify a Smoother Surface Finish Than Necessary: Only call out a fine surface finish on surfaces where it is functionally required, such as a sealing face or bearing journal.
Choosing the Right CNC Lathe Service Partner: A Buyer’s Checklist
Picking a qualified and reliable supplier is as important as the design itself. A strong manufacturing partner acts as an extension of your team. Use this checklist to evaluate potential service providers.
- Technical Capabilities: Do they have the right equipment for your part? Review their machine list to see if they offer multi-axis, mill-turn, or live-tooling capabilities if your part has complex features. Check that they can hold your required tolerances and work with your specified materials.
- Quality Control Systems: A commitment to quality is a must. Ask about their inspection process and the equipment they use. Are they ISO 9001 certified or compliant? This certification shows a robust and documented quality management system. Request sample inspection reports to see their process in action.
- Expertise & Experience: Look for a partner with proven experience, especially in your industry (e.g., aerospace, medical, automotive). A key sign of expertise is their willingness and ability to provide DFM feedback to help optimize your design for cost and quality.
- Communication & Support: The right partner is responsive and easy to work with. How quickly do they respond to quote requests? Is it easy to get in touch with an engineer to discuss technical details? Clear and proactive communication is essential for a successful project.
Lead Time & Logistics: A supplier’s quoted lead time must align with your project timeline. Ask about their typical turnaround times for projects of similar complexity and volume. Confirm they can reliably meet your deadlines and handle the necessary shipping logistics.
