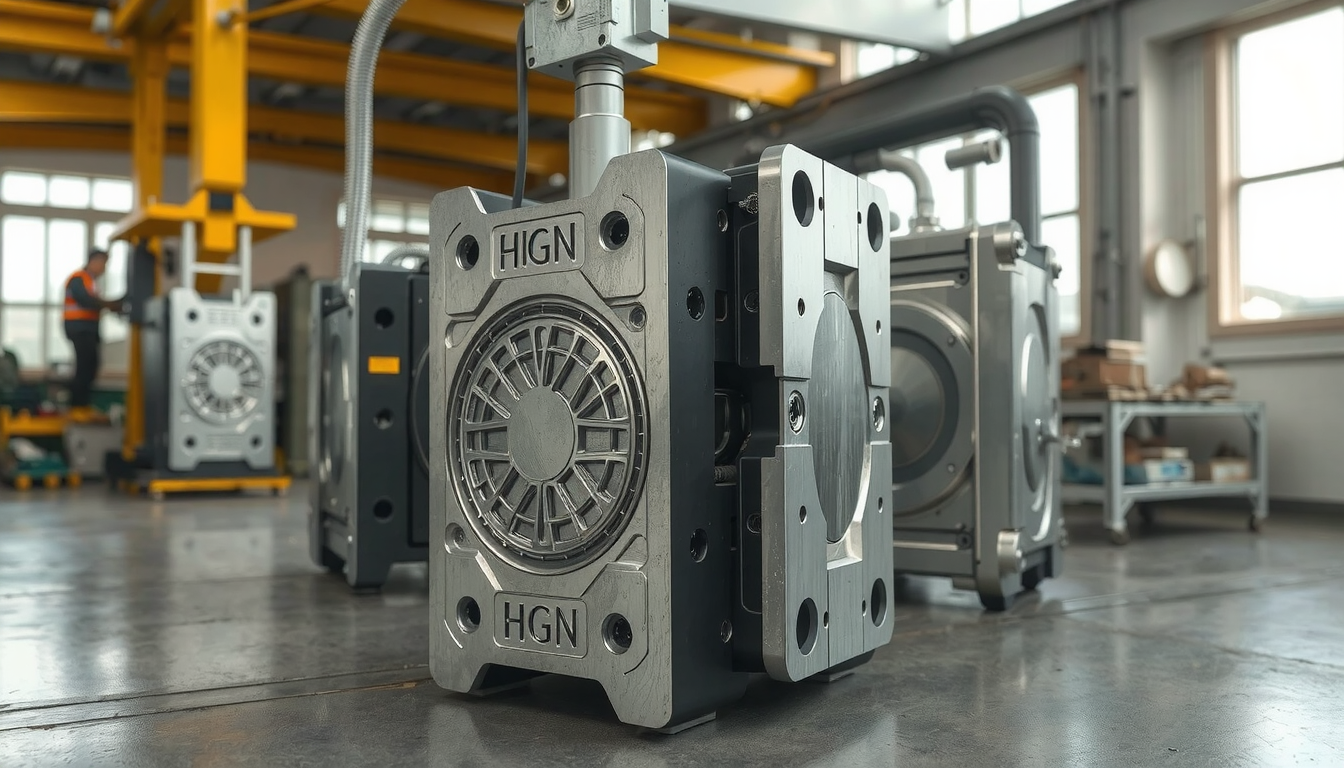

When you ask, “how much does an injection mold cost?”, the answer spans a vast amount of info. This is the most important fact that you have to keep in mind. A straightforward tool may only be a couple of thousand bucks. The price, however, for a complicated one might go beyond $100,000.
Costs can vary from $3,000 for a basic, single-cavity mold to more than $100,000 for a complicated, multi-cavity, high-production steel mold. This molding accessory makes up for a large part of the initial investment most of the time in plastic injection molding.
Nevertheless, this initial amount is distributed throughout the entire production cycle. Thus, the resulting cost for each piece in large quantities will be very low. In this document, we will refer to all of the aspects that are going to influence the prices. We will also supply some real-world examples while guiding you on how to manage these costs.
Injection Mold Pricing Overview
For the tooling costs estimation, the best way is to see the prices which are based on the production needs. The following table, which is mainly meant for budgeting, will show you how much the price of an injection mold can differ from one production volume to another and the raw material.
Estimations displayed here are only for reference. Your specific part design details create the cost variances. Therefore, the lower or upper ends of the ranges will be represented, respectively. The following section gives a brief explanation.
| Production Volume / Mold Type | Typical Mold Material | Estimated Mold Cost Range | Best For |
|---|---|---|---|
| Prototype/Low-Volume (< 5,000 units) | Aluminum or Soft Steel | $3,000 – $10,000 | Quick prototypes, market testing |
| Mid-Volume (5,000 – 50,000 units) | P20 Steel | $8,000 – $25,000 | Moderate production runs |
| High-Volume (100,000+ units) | Hardened Steel (H13, S7) | $25,000 – $100,000+ | Mass production, long-term projects |
7 Primary Components Influencing Your Injection Mold Pricing
Gaining insight into what makes up the price of the mold is also the right way to understand your quotes. The knowledge of these factors allows you to make positive design decisions that further decrease your tooling costs. Here are the seven primary drivers of injection mold costs.

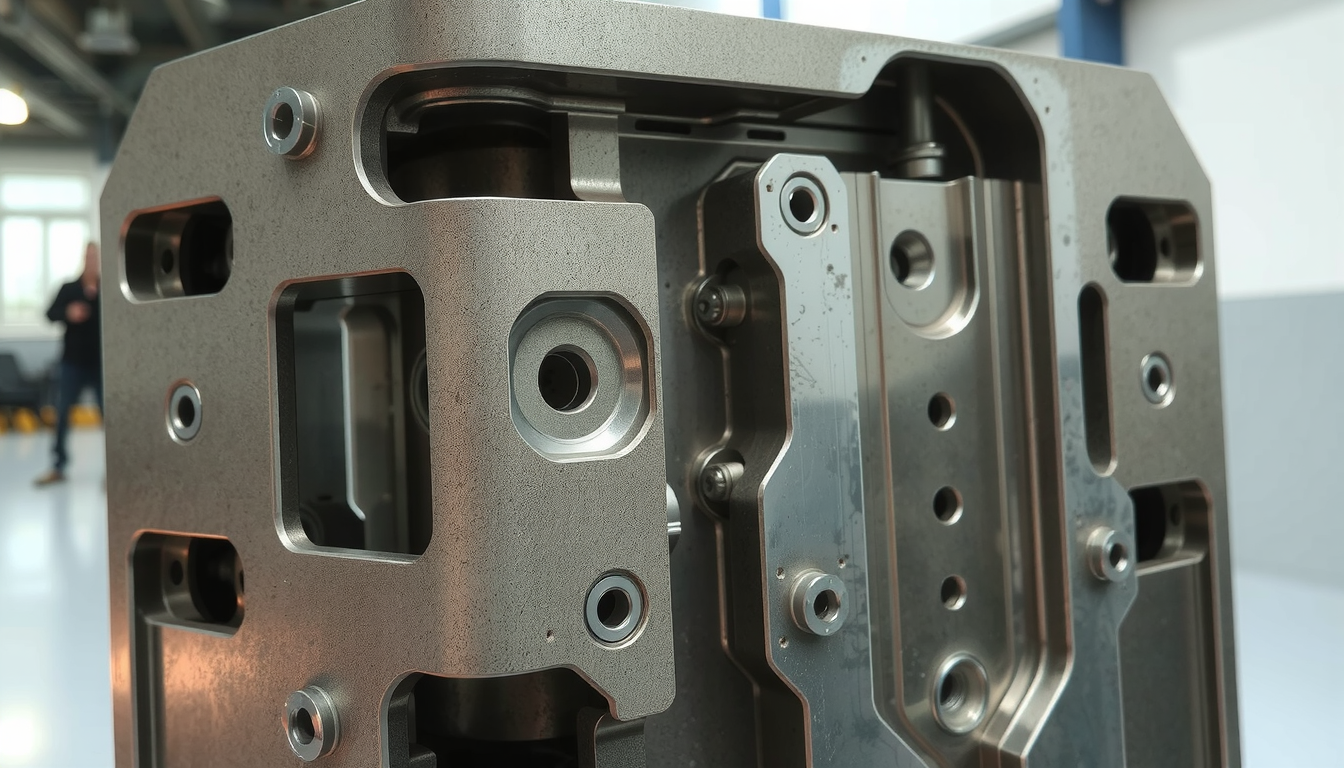

1. Part Complexity and Size
The design of your concept plays the most important role in the costs incurred. A basic cube-shaped part can be injected easily with a simpler mold. Contrarily, a fragment with convolute lines, outgrow, ribs, and undercuts has to be made with a much more complex tool. Undercuts, indeed, are sections that get in the way of the part ejecting straight from the mold. Consequently, such complex sections require side-actions or lifters to move.
Complexity, on the other hand, means longer design work time, additional machining, and more skilled craftsmen to make the mold. A bigger part also requires wider molds. This, naturally, increases the steel usage and machining time. As a result, it directly influences the mold price.
2. Mold Material (Steel vs. Aluminum)
The material used to make a mold has a significant effect on its price as well as its working period.
- Aluminum Molds: These are manufactured more quickly and at a lower cost. They are excellent for prototypes and low-volume runs, mostly below the 10,000 mark. But aluminum is soft and thus quite prone to wear.
- P20 Steel: This is the strongest cylinder in the industry. It provides a good mix of cost and endurance. P20 molds are the MVPs for mid-volume production. You can usually rely on them for tens of thousands of parts before they need replacement.
- Hardened Steel (e.g., H13, S7): Expensive as the molds are, they are the best option for durability. Mass production is the go-to application for these molds. They can tolerate hundreds of thousands or even millions of injections without degradation.
3. Number of Cavities
The cavity of a mold acts as the empty space that will be filled with the liquid plastic to make a part. Depending on the number of cavities, a mold can be a one-cavity mold or a certain amount of it.
A single-cavity mold meanwhile is cheaper to manufacture. Although multi-cavity molds cost more upfront, they are able to produce more parts within each cycle time. This subsequently reduces the unit cost. This is a significant benefit in situations involving high-volume production.
4. Part Tolerances and Surface Finish
Tolerances are values that determine whether a part’s actual size can alter from what it is intended to be. Restricted variations of nominal sizes call for the use of precise machine tooling and thus, additional capital costs in manufacturing. Besides the investment of more durable machines, this also requires more time for adjustments and tests. Consequently, tight dimensional tolerances for molds will cost more.
Also, the surface finish requested will play into the final cost. A standard, non-cosmetic, surface finish is the least costly. A high-gloss, mirror-like surface, specified by SPI-A1, requires a number of hours of detailed work by skilled workers, resulting in very high costs. Textured surfaces too incur added costs for the special types of processing that would be involved.
5. Runner System (Hot vs. Cold)
The runner is the actual channel through which melted plastic moves from the nozzle of the machine to the cavities.
A cold runner is just a channel that is already machined inside the molded plates. It is easy and inexpensive to keep the mold down. The downside is that the runner, which carries the material, solidifies at the same time as the part. This creates waste that needs to be disposed of, recycled, etc.
In contrast, the hot runners system sprays a heated manifold to keep the material liquid until the cavity gets filled. The mold is then more complex and pricey. In this case, you will receive a return on your investment because of eliminating runner- waste, shorter cycle times, and improved part quality. Hence, you will be rewarded for the investment in the long run for high-volume production.
6. Mold Durability / Total Production Volume
This item is directly connected to the material of the mold. At the time of quoting, you should be clear with your projected total production run. Laying out a mold for 1,000 prototypes will be very different than one for 1,000,000 parts.
High-volume uses require the use of hardened steels, better cooling, and much more robust structures to endure. As the experts suggest, complex multi-cavity molds made of steel for high-volume production can be risky but also necessary for mass production. That initial investment ensures the machine runs for a long time and efficiently.
7. Geographic Location of the Mold Maker
The location of the mold is also a significant factor in determining the price. Mold makers in the USA or Europe tend to have much higher labor costs and hence higher prices.
Offshore mold making, especially in China, is sometimes as much as 20 to 40% lower for the tool itself. Meanwhile, you should also take into account potential shipping costs, communication difficulties, and quality control concerns. The mold precision is the one thing that has to be maintained and usually relies on advanced techniques such as those available in China CNC machining services.
Application to Real-Life: Separating the Costs of Three Distinct Molds
Abstract numbers can be practical only if actual examples are provided. Based on our long experience with a myriad of projects, the following scenarios present a breakdown of the factors affecting the cost of an injection mold.
Scenario 1: Simple Consumer Product Casing
- Part: A small, simple electronics enclosure. A generic box shape with no undercuts and a standard finish that is non-glossy.
- Volume: 20,000 units.
- Mold Choice: A single-cavity P20 steel mold with a cold runner.
- Estimated Mold Cost: ~$8,000 – $12,000.
- Justification: The basic design and mid-range volume basically point straight to a simple P20 steel mold as the best option. It is strong enough for the manufacturing cycle to pass without the costs of either a hot runner or a hardened steel.

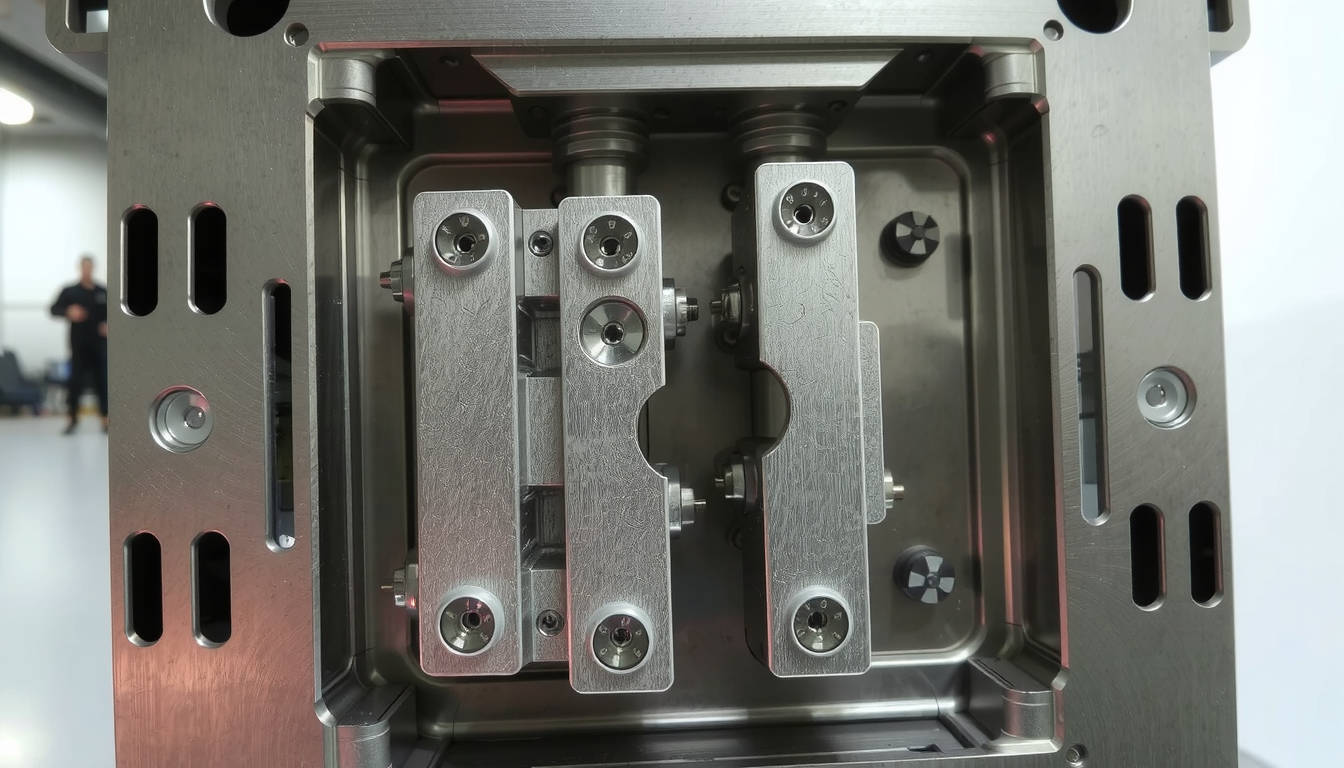

Scenario 2: Complex Medical Device Component
- Part: A tiny, very sophisticated component with threads inside, very close tolerances (±0.05mm), and a clean slick finish.
- Volume: 50,000 units per year.
- Mold Choice: A 2-cavity hardened steel mold with side-actions for the threads and a hot runner system.
- Estimated Mold Cost: ~$25,000 – $40,000.
- Justification: High complexity means you have to incur significant costs, which are the factors that drive the costs. The holes require mechanical side-actions. The dimensions demand nanometer precision and the fabrication of a duplicate mold for testing. The threads that need firing also add to the costs. The tuner annual volume comes at a price but they are worth it in quality and longevity.
Scenario 3: High-Volume Bottle Cap
- Part: A really simple plastic cap. While the part geometry may not be complicated, the production volume is massive.
- Volume: 1,000,000+ units.
- Mold Choice: A 16-cavity hardened steel hot runner mold.
- Estimated Mold Cost: ~$60,000 – $90,000+.
- Justification: Here, the aim is to attain maximum efficiency. The high initial mold price is due to the multiple cavities and the innovative hot runner system. The features in turn, permit ultra-quick cycle times and an extremely low cost per unit of production. These are critical aspects of a project of this magnitude.
Looking Beyond the Cost: How to Enhance Your Mold Optimization
A common mistake that people often make is to focus only on the upfront cost of molding tooling at the cheapest price. To reach a smart conclusion you should consider the Total Cost of Ownership (TCO). The TCO is composed of the initial mold price and all further costs originated from repairs, maintenance, and production efficiency throughout its whole life.
The Steel vs. Aluminum Trade-off, Revisited
Let’s imagine you need 50,000 parts. An aluminum mold looks most appealing at a low cost now. But what will happen if it fails after 15,000 parts? You will again have to pay for a second mold to be made. These costs for downtime, etc., would make the initial “savings” non-existent. The long-term comparison favors a single P20 steel mold in such a case.
When to Look Into Investing in a Multi-Cavity or Hot Runner Mold
Investing in a multi-cavity or a hot runner mold may seem difficult at the start due to the considerable upfront costs. But it can means a much lower cost on the parts you produce in the long run. You can calculate the break-even point. Just divide the extra mold cost by the per-part savings. The result will tell you the number of parts you need to produce before the advanced mold will cover itself.
The aim is not just to make an injection mold. The goal is also to create a successful production process. This is the point where in-depth knowledge of specific industries like injection mold creation is highly important in the long run.

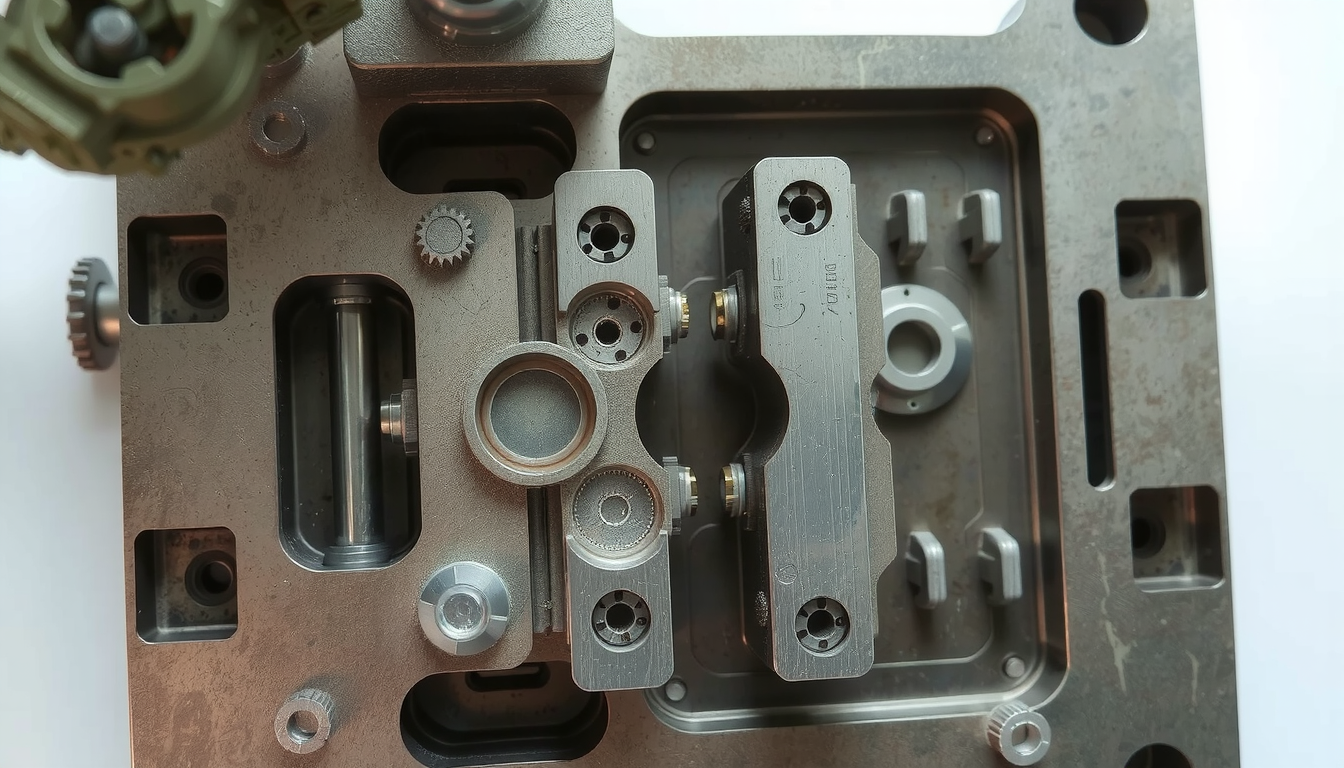

5 Actionable Tips to Bring Down the Cost Of Injection Mold
You can efficiently lower your tooling costs without reducing quality by taking practical measures. The most important thing is to see things from a manufacturing perspective from the day you design your product. Below are the five strategies that can make a difference in the cost of an injection mold.
- Make part design simple. Each additional feature increases the cost. Revise your design and delete any parts that are not key. For example, ask yourself did you really need this undercut? Or should two separate pieces get monolithic?
- Ease Tolerances Where Possible. Tight tolerances should only be applied on features that are very critical to your part, such as mating surfaces. Relaxed tolerances on less-critical areas may make the mold a lot easier and more economic to fabricate.
- Avoid Finishing that is Too Cosmetic. Mirror-polising (SPI-A) is exceedingly expensive because of the manual effort required. If the surface of the part is internal or if the part does not need a glossy finish, a standard SPI-B or C finish is highly more affordable.
- Talk early with a Manufacturer (DFM). The biggest mistake is making a part that is hard to manufacture, a result of imperfect design. Partner with a plastic injection molding expert during the designing phase. Their Design for Manufacturability (DFM) vision will highlight changes that can help you save costs prior to your consent on the design.
- Create a Consistent Wall Thickness. Uniform walls on parts will cool evenly. This will avoid issues like warping or sink marks. It will also simplify the cooling system for the mold, which will result in reduced costs. In the words of an expert, an excellent CAD designer is worth their weight in gold which would save you thousands of dollars on tooling with a proper design.
Making The Right Choice For Your Project
Ultimately, understanding ‘how much does an injection mold cost’ is not just a matter of a single figure. It requires a consideration of several factors’ trade-off: part complication, fabricating volume, selecting material, and future benefits. A low-priced mold would only be a reasonable deal when it meets the demands of your project.
Choosing the right manufacturing partner is fundamental in this agents’ process. They can guide you to the balance that will serve you the best in the upfront as well as in the long run. Overall, an injection mold is not just a product; it is a piece of custom engineering that makes byproduct of your company.
For the same measure on your project and for a clear cost breakdown refer to the experts at Mekalite.
