Custom metal stamping dies are unique in that they are special tools. They exactly cut and form sheet metal into equivalent shapes. The dies are made uniquely for each piece.
These are the tools primarily made for various parts from cars to airplanes, electronic devices and medical machines. If you need mass production of some specific metal parts, the best way, in this case, is to create a custom metal stamping die.
This text will guide you on everything related to custom metal stamping dies that you need to know. We deal with discussing the die types and cost factors and finally we will suggest you how to choose your project specific tool.

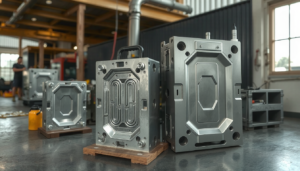

Scientific View of a Metal Stamping Die
A metal stamping die is made of two halves, namely, a top die and a bottom die. The two halves are put in a stamping press to form the die, which provides force to reshaping the metal.
In the study of how tailor-made metal stamping dies operate, a basic understanding of their parts is necessary. Here are the essential components mostly found in a die set:
- Die Block: This is the fixed lower part of the tool. It often has the cavity or shape that the metal is formed into. It is the base of the die.
- Punch: This is the dynamic upper part of the tool. It performs the cutting or forming action. It might pierce a hole, bend a flange, or draw a cup shape.
- Stripper: It this part prevents the sheet metal from bending during the work. After the punch forms the part, the stripper pushes the material off the punch so it does not stick.
- Guide Pins/Bushings: They are precise rods and sleeves, which ensure that the upper and lower halves of the die align perfectly with every press stroke. The correct alignment of the die is crucial for the accuracy of the parts.
Types of Custom Metal Stamping Dies
Not all custom metal stamping dies are alike. The die that suits your needs best will depend on the component’s design, how many parts need to be produced, and your budget. Finding the right one is a fundamental step.
Progressive Dies
Progressive dies are built for the mass production of complex parts. The die is fed automatically with a coil of sheet metal. The die has arranged stations. Each station performs a different function. The part joins the metal strip during the entire process. That is the reason it is called a “progressive” process.
Compound Dies
Compound dies cut a number of different shapes in one press stroke. For instance, they can punch in a center hole and cut the outer edge of a washer at the same time. This means that they are so exact that they are perfect for flat parts. They fit the best for making simple items such as washers and shims with a high degree of accuracy.
Transfer Dies
In the transfer die, the part is cut from the main metal strip at an early stage in the process. Mechanical fingers then grip the part and move it from one station to the next. Larger parts like car body panels are made this way. These parts cannot be easily supported by a thin metal strip.
Drawing Dies
Drawing dies come in handy when the flat metal blank’s surface area is stretched or “drawn” into remarkable depth, three-dimensional configurations. Such products as cups, cans, and deep boxes are processed by this method. The die precisely directs the flow of metal in order to avoid tearing or wrinkling.
Marking and Coining Dies
These dies do not serve the purpose of cutting or major forming. They are used instead to add features to a part’s surface. It may be logos, part numbers, or specific textures. Custom steel stamps and marking dies can be utilized to create permanent marks for tracking and branding on your final product.
Die Choice Matrix: Associating A Suitable Die with the Project
A decision on the right custom metal stamping die is often hard to make. The mechanical structure of the part, production rate, and expenses come into play. The table given here serves as a guideline to quickly compare the common models.
| Die Type | Part Complexity | Production Volume | Upfront Tooling Cost | Per-Part Cost | Production Speed |
|---|---|---|---|---|---|
| Progressive | High | High | High | Low | Very High |
| Compound | Low | Medium | Medium | Low | Medium |
| Transfer | Medium/High | High | Very High | Low | High |
This matrix clearly shows the trade-offs. When working on high-volume, complicated parts, the most cost-effective option in the long term is often to go with a progressive die. The initial high cost for tooling is compensated for by the low cost per part and it is very speedy. A compound die is a very good choice for simple, flat parts at medium volume since it achieves a good balance between precision and cost.
Main Elements Affecting Die Cost and Lifespan
The price of custom-made metal stamping dies can fluctuate widely. Therefore, if you want to budget and plan effectively, you should first understand what affects the price of the tool and its longevity. Here are the key elements.
Die Material and Hardness
The material from which the die is made is the primary price factor. The most used material for dies is hardened tool steels. The commonly used types are A2, D2, and M2 steel. The choice is made depending on the type of metal being stamped and the total number of parts required. Tool D2 is a popular choice because it offers good wear resistance and strength. Carbide is usually used for very high runs, where tool longevity is most relevant.
Part Complexity and Tolerances
A simple, flat part only requires a simple die, while a more complex part with many bends and features will need a more advanced die. In addition, tighter tolerances will raise costs. Tolerances are the acceptable limits of variation in a part’s dimensions. Tight tolerances which require a great amount of time to achieve, need particular measurements to be better. Precision metal stamping services require more effort in designing tools to achieve tight specifications.
Die Size and Press Tonnage
The die size is determined by the part size. Bigger dies will need more material and machining time and larger, more powerful presses to work. These factors lead to higher tooling costs.
Expected Die Lifespan
For how long does the die need to make parts? Prototype dies could only be meant to last for a few thousand parts. With regular maintenance, a “Class A” high-volume production die can make over a million parts. The needed lifespan directly affects the materials used and the strength of the die’s construction. Providers can deliver dies for any production level, from standalone prototypes to high-volume multiple runs. For instance, Custom full-service metal stamping is a good option.
Your Precise Route to Acquiring a Custom Die
Procurement of a custom metal stamping die can come across as a tricky process. However, once you develop a solid plan, you will be able to easily sail through the process and have a positive outcome. Our experience reveals that the most successful projects start with the most effective communication and planning.
Step 1: Technical Package
Prior to receiving a more exact quote you are required to deliver a complete technical package to the manufacturing partner. One of the common mistakes we see is that customers provide incomplete information. This results in project delays and incorrect pricing. The package must contain:
- 2D and 3D CAD files of the part.
- The specific material type and thickness.
- All required tolerances for critical dimensions.
- Estimated Annual Usage (EAU), or how many parts you need per year.
- Your target price for the finished part, if you have one.
Step 2: Design for Manufacturability (DFM) Review
Your package is sent, and the next step to take is the Design for Manufacturability (DFM) review. This is a team process in which the engineers of your supplier take a look at your part design. They seek ways to improve the ease of producing and cost-effectiveness. Very small changes, for example, the enlarging of a corner radius, may lead to big savings in tooling and part cost.
Step 3: The Right Manufacturing Partner
Choosing the right partner plays an important role in the success of your custom metal stamping die project. Look for a company that has been in the market for long and has a good reputation. Here are a few questions to ask the potential suppliers:
- Are you experienced with our specific material and industry?
- Do you design and build the custom metal stamping dies in-house?
- What are your quality certifications (e.g., ISO 9001)?
- Can you provide examples of similar projects or references?
A good supplier, such as Mekalite, will have a clear process and a strong engineering team to guide you.
Step 4: Die Prototyping, Validation, and First Article Inspection (FAI)
Once the die is produced, it has to be checked. The manufacturer will run the die and produce the first sample parts. These parts are measured for the accuracy of dimensions that you provided. The report that is written on this is called a First Article Inspection (FAI). These parts need to be approved by you before mass production starts. Thus, it is confirmed that the custom die is in perfect operating condition.
The Necessity of Precision Machining in the Field of Die Making
The industrial die stamping is impossible to carry out without the use of sophisticated machining technology. The machines used to produce the die govern the quality and the accuracy.
Technological advances such as Wire EDM (by Electrical Discharge Machining) which are utilized to cut intricate shapes and corners in the hardened tool steel are key technologies. CNC (Computer Numerical Control) machining, on the other hand, is responsible for the construction of the die blocks and other components with remarkable accuracy.
Components such as the custom guide pins, bushing, and complex punch tips are mainly of advanced processes like a CNC turning service. Micro-stamping dies with the very highest degree of precision required are offered by Swiss CNC turning services.
Your Questions about Custom Metal Stamping Dies and Their Answers (FAQ)
How much time does it usually take to build a custom metal stamping die?
The lead time fluctuates based on the die’s intricacy. A single die can take the design and building of 6-12 weeks to complete. On the other hand, an extremely complicated progressive die meant for a car part could take over 20 weeks. Always ask your manufacturer for an exact timeline.
Who is the owner of the custom die after it is completed?
In most instances, it is the customer that owns the die. A customer pays for the tooling and has rights on the die, respectively. The manufacturer will usually store and maintain the tool for the life of the project. Your contract with the supplier must contain a clear ownership agreement which is very crucial.
Is it possible to modify an existing die for a new part design?
At times, changes can be made on a minor scale. If it is just a matter of altering the hole position, it might be alright. Nevertheless, the redesign of the part shape almost always leads to a completely new custom metal stamping die being created. The design is specific for one geometrical figure.
What does “die maintenance” mean and why is it significant?
The term die maintenance refers to the cleaning process, cutting edge sharpening, and the replacement of worn-out components like springs and pins. It is necessary for two reasons. Ensuring the quality of the parts made is the first one. The second one is that it increases the die’s lifespan, thus, protecting your investment.
What are the expenses related to custom metal stamping dies?
The expense of a custom metal stamping die can range from a few thousand dollars for a very simple tool to over one hundred thousand dollars for a large, complex progressive die. The ultimate cost is affected by the factors discussed in this guide: die size, complexity, material, and required lifespan.
