Introduction: The Machine That Drives the Production of Precision Metal Parts
A custom metal stamping tool is a piece of special equipment. It makes sheets of metal into specific shapes of the same kind repeatedly. The tool is also known as the die set. The die set is the primary component involved in metal stamping, thus it is also called a die set. It is the main part that is responsible for the accuracy of each part.
This guide will be discussing the use of die sets in industrial manufacture in bulk. They are not the same as simple handheld devices for tiny jobs or crafts. We will not be including those here.
The aim of this guide is to help engineers, designers, and buyers in finding all the essential information they need. Types and design procedures, as well as the sourcing of tools, are what we are going to cover. The first thing that you have to do is learn about your custom metal stamping tool.
Grasping the Different Kinds of Custom Metal Stamping Tools
If you want to make smart decisions you must be well-informed about the different types of tooling. Every type offers various advantages depending on the project requirements. Your preferred option will be determined by the complexity of your part, the volume you need, and the available budget.

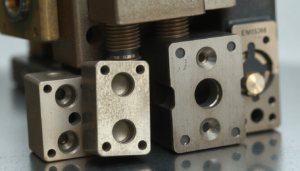

What is Stamping Die?
A stamping die is the component responsible for the actual processing. It is a coldworking operation that converts sheets of metal into a desired shape. The die set is placed in the stamping press, which commences the metal-forming process by shaping and cutting the strip. The specific die design around which each custom metal stamping tool has been developed is the basis for all.
Industrial Tooling Configurations Commonly Used
Industrial stamping tools fall into three main types. Each provides different combinations of speed, cost and complexity.
| Тип инструмента | Complexity & Speed | Первоначальная стоимость | Лучшее для |
|---|---|---|---|
| Progressive Die | High complexity; very fast | Высокий | Complex parts with multiple features; high-volume production (e.g., millions of parts). |
| Compound Die | Low complexity; moderate speed | Умеренный | Simple, flat parts like washers and shims that require high accuracy in a single press stroke. |
| Line / Single-Station Die | Low complexity; slow | Низкий | Low-volume production or very large parts that are moved manually or by robots between stations. |
A progressive die is one of the many stations. A metal strip cuts through all the stations one by one. At every station, a specific action happens. This could be cutting, bending, or punching.
A compound die can make several cuts or punches during one press stroke. This is beneficial in the aspect of accuracy on the flat components.
Line dies also known as single-station dies, have separate tools. They operate independently. The part is transferred from one press to the next. This way is slower but the initial cost is lower.
Key Design & Engineering Considerations for Your Tool
The creation of a custom metal stamping tool should start with the planning phase. Good planning helps you to avoid costly mistakes. Thus, your final part will meet all the requirements. With the use of this checklist, prepare for the talks with your manufacturing partner.
Part Geometry and Complexity
The geometry of the part is the most essential tool’s design factor. Geometrical features such as internal bias angles, very deep draws, and micro holes will be difficult.
Acute internal corners may be stress risers in the tool. This leads to a stress increase and faster wear. Gentle curves are better. Deep draws require complex tooling and may require specific materials to avoid tearing.
Выбор материала
Besides the part material, there is also the material used for the tool itself.
- Part Material: Your selected metal’s properties will have an effect on the tool design. The materials you can use are steel, aluminum, or brass, for example. Tooling requires a tougher and more robust custom metal stamping tool which corresponds to the use of harder materials.
- Tool Steel: The tool is made from various kinds of high-strength tool steels, such as D2, A2, or sometimes carbide. The choice tool steel will depend on the part material and the expected quantity produced. A more robust tool steel enhances the tool life span.
Required Tolerances and Precision
Tolerances refer to the acceptable variation range in relation to the predetermined dimensions of the part. The tighter the tolerances are the lesser variation will be allowed. Thus, the price of the custom metal stamping tool will increase.
The toolmaker has to work more precisely and accurately to match tight tolerances. Apart from that, they would need more time and advanced machinery. In some cases, shapes with high complexity or extremely tight rotation features may require other processes. For that, you would need to search for Токарные работы с ЧПУ в Швейцарии that deliver the high accuracy required.
Estimated Annual Usage (EAU) and Product Lifecycle
The quantity of parts you are going to produce is one of the main factors of tool design. A tool that is designed for a yearly production of 10,000 parts is totally dissimilar to the one designed for a yearly production of 1,000,000 parts.
The high-volume tool is going to be made of more durable materials, including carbide inserts in high wear places. Thus, the upfront costs will be larger, but the long-term cost will be lower. On the other hand, the low-volume tool may be produced with cheaper materials which will reduce the initial investment.
Вторичные операции
Do you have any additional requirements such as threaded holes or nuts and studs to be put inside?
Many of these secondary operations can be done “in-die.” This means the custom metal stamping tool does these tasks as part of the stamping cycle. In-die operations add to the complexity and cost of the tool. But as they save labor, sometimes, they can greatly reduce the final part price.
The Tool Creation Process: A Step-by-Step Guide
The order of a custom metal stamping tool can look as if it is complicated. Here is a simple guide, step by step through the process you are going to follow. This roadmap is meant to set a clear understanding from the very beginning of your timing and your involvement.
Step 1: Design Submission and Quoting
The first step is the end of the process when you need to turn in your design. You need to send a detailed complete package to get an accurate quote. In it, you should include 3D CAD files (such as STEP or IGES), 2D drawings which show all dimensions and tolerances, material specifications, and your Estimated Annual Usage (EAU).
Step 2: Tool Design and Simulation
Once you accept the quote, the engineers of the manufacturer will be designing the custom metal stamping tool. They use sophisticated CAD software to create a 3D model of the entire die set.
Often they will run virtual process tests first. These shall depict how the metal will behave during forming. So this blockage of cracking or wrinkling names the help saving time and steel cutting costs. You will give your consent to this tool design before the manufacturing process begins.
Step 3: Tool Manufacturing
After the design gets the green light, the toolmaking begins. The individual parts of the die are manufactured with extreme precision. This activity is done via highly developed machinery. To illustrate, a professional Токарные работы с ЧПУ makes circle parts of high precision. The use of Wire EDM (Electrical Discharge Machining) helps to cut already hardened steel into complicated shapes.
Step 4: First Article Inspection (FAI) and Adjustment
After assembling the tool, the manufacturer’s engineers execute the first sample parts. They will measure all the parts carefully so that they completely match every dimension on your drawing. The results will be then recorded in the First Article Inspection (FAI) report.
You will receive these sample parts along with the FAI report for your viewing. This is your chance to confirm that the tool is producing the parts exactly as you designed. Once you say “yes” to the first articles, the tool is ready for mass production.
Step 5: Production and Maintenance Program
Once the tool is approved it goes into production. A good manufacturing partner also puts in a planned maintenance program. This will be the schedule where the tool will be regularly cleaned, inspected, and sharpened. Only thus will a consistent quality and prolonged service life be assured.
Picking the Right Manufacturer
Partnering with the right supplier is just as important as the design of the part itself. A top manufacturer will be able to enhance your design, decrease costs and assure a well-organized production run. An unqualified one has the potential to bring about delays and inferior quality.
What To Watch Out For In A Supplier?
A manufacturer with immense competence in the making of custom metal stamping tools should be acquired.
- In-house Engineering & Toolmaking: A partner that designs and builds tools has full control over the process which leads to better quality and faster problem solving.
- Certification: Quality certifications like ISO 9001 have proven that the supplier has an effective quality management system.
- Proven Experience: Ask if they have worked on similar parts before. Custom Metal Stamping Dies created by established companies often show their competences in handling complicated projects.
The Importance of a True Partnership
The finest supplier is the one who works like an extension of your team. They should give you feedback on your design so that it can be improved. This process of design feedback is commonly called DFM. This collaboration leads to a matured project that is less costly and more efficient.
A trustworthy partner has a sincere commitment to your success. At Mekalite, we are a company that values working along with clients. We deliver high-quality tooling solutions that both hit the marks concerning performance and are on budget. This is what ensures successful completion for each of the projects.
Mentioning Hand-Held Custom Metal Stamps
Just for clarity, I would like to mention one more category of tools, the hand-held metal stamp. This particular tool is for entirely different purposes than the industrial ones discussed in this guide.
Hand-held stamps are most commonly used by jewelers, leatherworkers, and artisans. They are used to put logos or designs on items. These stamps are struck by a hammer and a bench block, which is a strong surface. These types of tools are for individual handicraft use and cannot be used for mass production. Metal Hand Stamps and Accessories are good examples of such tools. These are perfect for crafters as well as branding purposes.
FAQ: Answers to Your Questions about Custom Metal Stamping Tools
Below are the answers to some frequently raised inquiries about custom tooling for metal stamping.
How much does a custom metal stamping tool cost?
There is no standard price. The range of a custom metal stamping tool can be from a few to more than a hundred thousand dollars. Ultimately, the price is decided by the part size and complexity, the tool’s material of choice, and the expected production life (the total parts to be made).
What is the lead time for a new custom stamping die?
Lead times are varying from one another. For instance, a simple single-station tool may take only 4 to 6 weeks to manufacture while a complex progressive die for a large quantity part might require between 16 to 20 weeks or even more. The time counted is from the point where your design gets approval to when the first sample parts are delivered.
Who owns the tool after it’s made?
Most of the time, it is the customer who pays for the tool, so the customer owns it. The manufacturer is in charge of keeping, maintaining, and running the tool just for that customer’s production orders. This agreement of ownership should always be set out in your contract.
Is it possible to use one tool for different materials?
It is not advisable. Custom metal stamping tools are designed specifically based on one type of material’s properties. This includes thickness, hardness, and formability characteristics. Thus, using a different material can lead to defective components and tool damage.
What is the difference between a tool and a die?
In the stamping industry, these two terms are often interchangeably used. “Die” or “die set” usually refers to the specific parts that cut and shape the metal directly. “Tool” or “tooling” is a more general term. It includes the whole die set assembly in which the die is placed in.
